3000 Series For Cylindrical

Trine Electric Strikes for Cylindrical Locks

The 3000 series pairs a mechanism with the faceplate that fits the frame. Mechanisms include the 3012 (12DC, .480 amps, Grade 1), the fail-secure 3024 (24VDC) and the 30LC, which uses an external LC100 line conditioner to regulate 12-24 VAC/DC input. They accept a bolt up to 5/8" throw and are rated for 500,000+ life cycles and 1,500+ lbs. of holding force, with a solid stainless steel latch and locking mechanism.

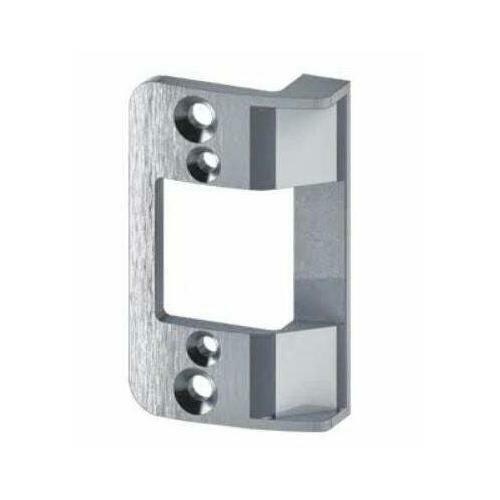

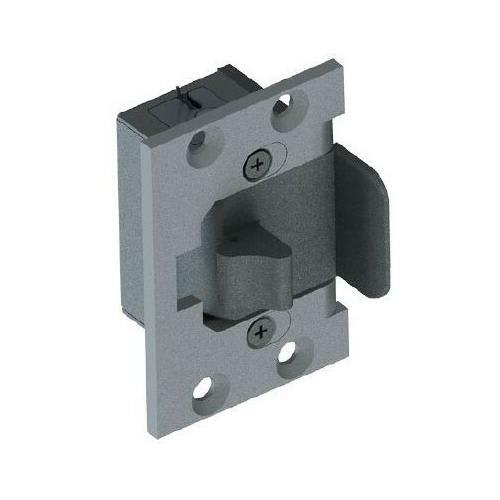

Kits include the 323478LC ANSI solution, the fire rated 323478F-LC and the 323478FX-LC for Timely and Redi frames, and complete 3478 strikes come with a 4-7/8" faceplate. Faceplates include the adjustable 478 ANSI faceplate, the 458 for Adams Rite MS lock preps and the 478X extended ramp, and the 3250SOM is the only electric strike for use with Dor-O-Matic.

Browse the full Trine catalog, or Contact our team with your lockset and frame details.
