MR Series

Track and Cabinet Mount Control Relays

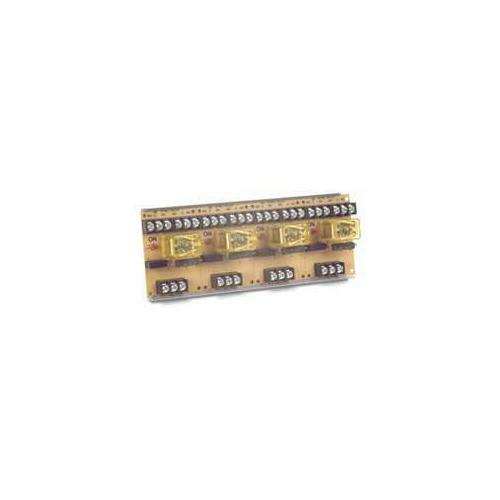

Space Age Gator Relays MR Series relays come in track versions and in gray or red cabinets, with Q4 and Q8 versions in several lines. Multi-voltage control relays include the MR-100 SPDT relays for 18-32VDC, 24VAC and 120V/230VAC, the MR-200 DPDT relays, the MR-400 DPDT relays with manual test, the MR-800 SPDT relays for 24VAC/DC and 120VAC, and multi-voltage relays in track, cabinet and spacer versions.

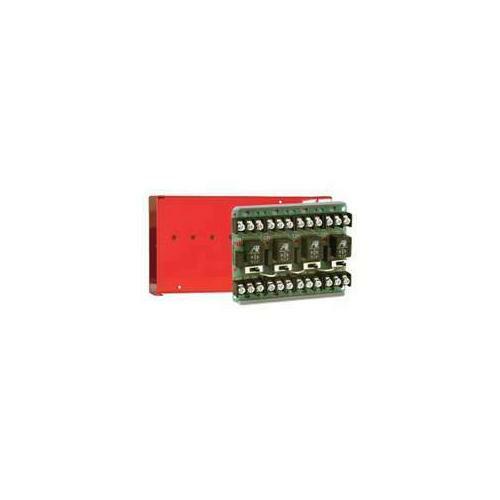

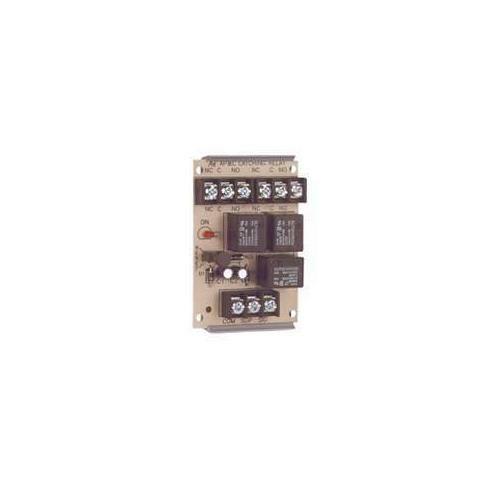

The SSU-MR-804/T is an MR-800 Q4 track relay, 10A SPDT and polarized, and the SSU-MR-601/T is a 24V AC/DC 10A SPDT track relay with an HOA switch from the manual override relays. The SSU-MR-101/C/R is an MR-100 SPDT control relay in a red cabinet, the SSU-MR-901/T is a 10A DPDT track relay for 24VAC/DC and 115VAC from the latching relays, and the SSU-MR-104/C/R is an MR-100 4-position control relay. The SSU-MR-201/C puts a 10A DPDT relay for 24VAC/DC and 120V/240VAC in a gray cabinet.

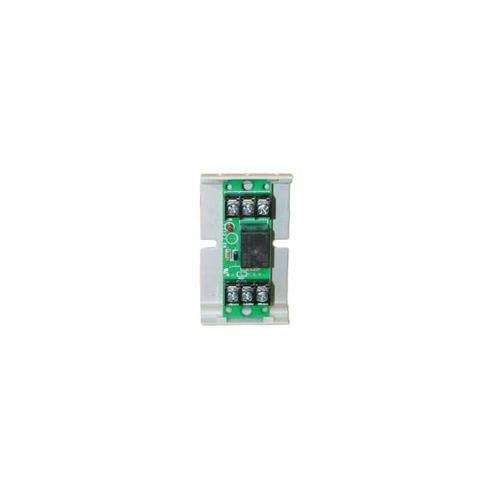

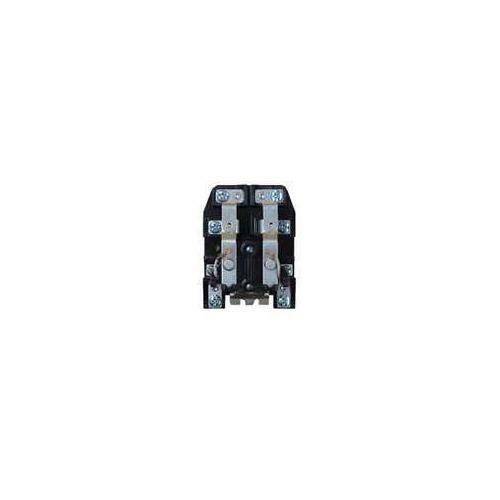

The heavy duty power relays are 30A DPDT relays with a 2HP rating for 120VAC or 24VDC, such as the SSU-MR-199X14CR. Low voltage control relays trip at 2.5-27.3mA on a 5-27.3VDC host, MR-700 relays are 10A SPDT polarized relays for 12VDC and 24VDC, and the compact form dual relays include the SSU-MR-821/T with dual relays. The line also covers inspection, test and maintenance relays, relay cabinet enclosures and grey PVC snap track.

See PAM Control, RIC Series and Specialty Control. Browse the full Space Age catalog. Contact our team with your voltage, contact form and mounting for help choosing an MR relay.
